Interface Engineering Solutions has developed and tested this cost efficient and reliable subsea pump to furnish a much needed resource to the pipeline decommissioning tool kit. It has a proven track record and has proven to be a workhorse.
Developed specifically for pipeline flushing operations involving high risk operations such as pumping of hydrocarbons.

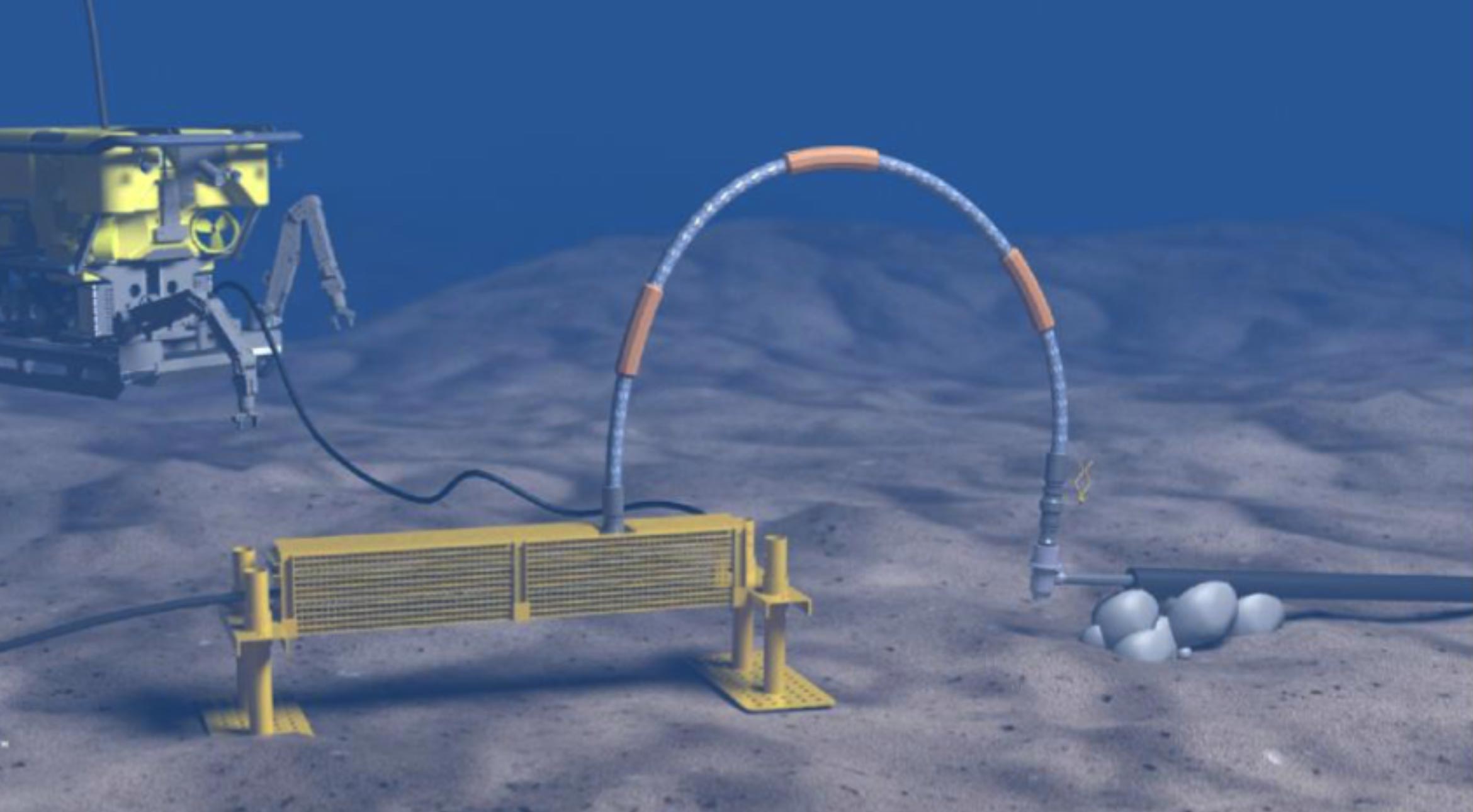

It is interfaced, powered and controlled via the suitable work class ROV. All power and controls are transferred between the pump and ROV by subsea pressure balanced hot-stab. The unit may be wet stored on the seabed for extensive period of time.
Developed specifically for pipeline flushing operations involving high risk operations such as pumping of hydrocarbons.
It is interfaced, powered and controlled via the suitable work class ROV. All power and controls are transferred between the pump and ROV by subsea pressure balanced hot-stab. The unit may be wet stored on the seabed for extensive period of time.
Name: Multipurpose Subsea Pump
Manufacturer: Interface Engineering Solutions (IES)
Type: Subsea WROV Operated & Powered Pump
Work Capabilities: Light weight subsea pipeline decommissioning work powered by separate WROV hydraulic system
Spares: Include a complete spare pump, hydraulic motor and drive coupling
Length: 5400mm
Width: 1300m
Height: 700-1300mm (adjustable)
Weight in air: 1t (Rigging rated to WLL 4t)
Operating depth: Full Ocean depth
Pump Type: Progressive Cavity, Positive Displacement Pump
Pump application: Crude oil/condensate/produced water, hydraulic oil, waste oil, grout and cement, starch slurries, shear sensitive latex emulsion, primary and secondary sludge, coating slurries, mine de-watering.

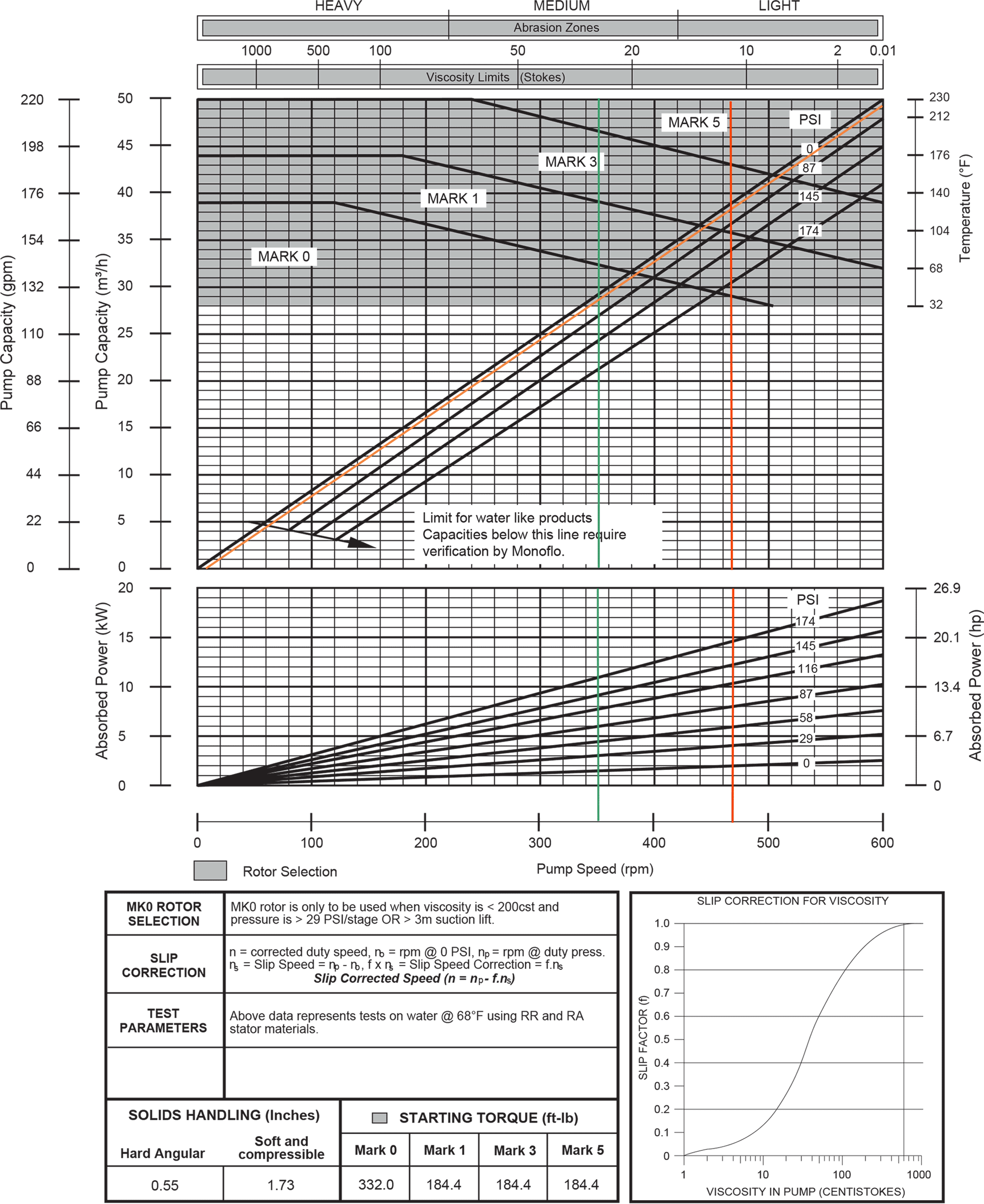

Pump capacity (nominal): 25 m3/h
Pump capacity (maximum): 45 m3/h
Pump differential pressure: 6 bar
Flow rate: Can be infinitely adjusted by the input pressure/flow to the drive motor.
Pumping Direction: Reversible flow, same performance in either direction.
Hydraulic flow rate: 65 L/min
Hydraulic supply pressure: Max 200 bar
Deck space requirements: 4x6m
Power supply requirements: Interfaced to ROV performed subsea, using a dual hot-stab.
Operator: Operated by ROV crew. No additional operators required.
